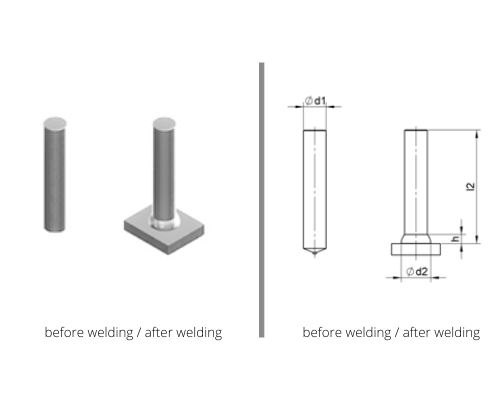

type UD acc. to DIN EN ISO 13918

Non-threaded stud

Dimensions

Description	Length
6	15-100 mm
8	15-100 mm
10	15-100 mm
12	15-100 mm
14.6	20-100 mm
16	30-100 mm
20	40-100 mm
22	40-100 mm

1. for l2 < 20 mm

*d2 and h are approximate values

Download Data Sheet
