Shear connector studs

type SD1 acc. to DIN EN ISO 13918

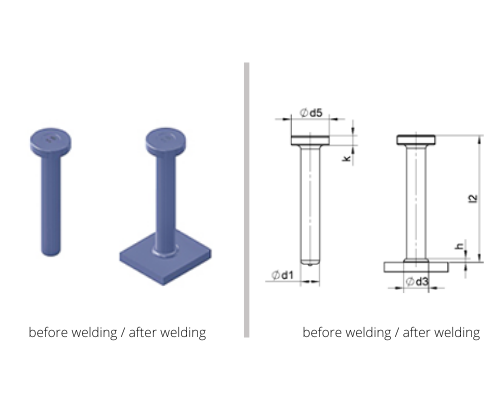

Shear connector

Shear connector studs

Dimensions

Description	Length
16	150 mm
16	175 mm
16	200 mm
16	225 mm
16	250 mm
16	275 mm
16	300 mm
19	50 mm
19	60 mm
19	75 mm
19	80 mm
19	90 mm
19	100 mm
19	125 mm
19	150 mm
19	175 mm
19	200 mm
19	225 mm
19	250 mm
19	275 mm
19	300 mm
22	75 mm
22	90 mm
22	100 mm
22	125 mm
22	150 mm
22	175 mm
22	200 mm
22	225 mm
22	250 mm
22	275 mm
22	300 mm
25	75 mm
25	100 mm
25	125 mm
25	150 mm
25	175 mm
25	200 mm
25	225 mm
25	250 mm
25	275 mm
25	300 mm

*d3 and h are approximate values.

Download Data Sheet
