type RD acc. to DIN EN ISO 13918

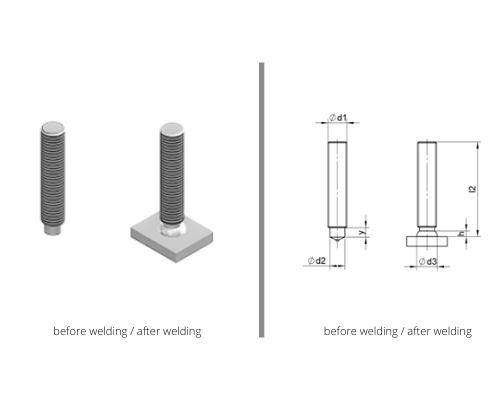

Threaded stud with reduced shaft

Dimensions

Description	Length
M6	15-100 mm
M8	15-100 mm
M10	15-100 mm
M12	20-100 mm
M16	25-100 mm
M16	25-100 mm
M20	30-100 mm
M24	50-100 mm

1. Other y-dimensions available on request.

2. P = thread pitch acc. to DIN 13-1

3. for l2 < 20 mm

*d3 and h are approximate values.

Download Data Sheet
